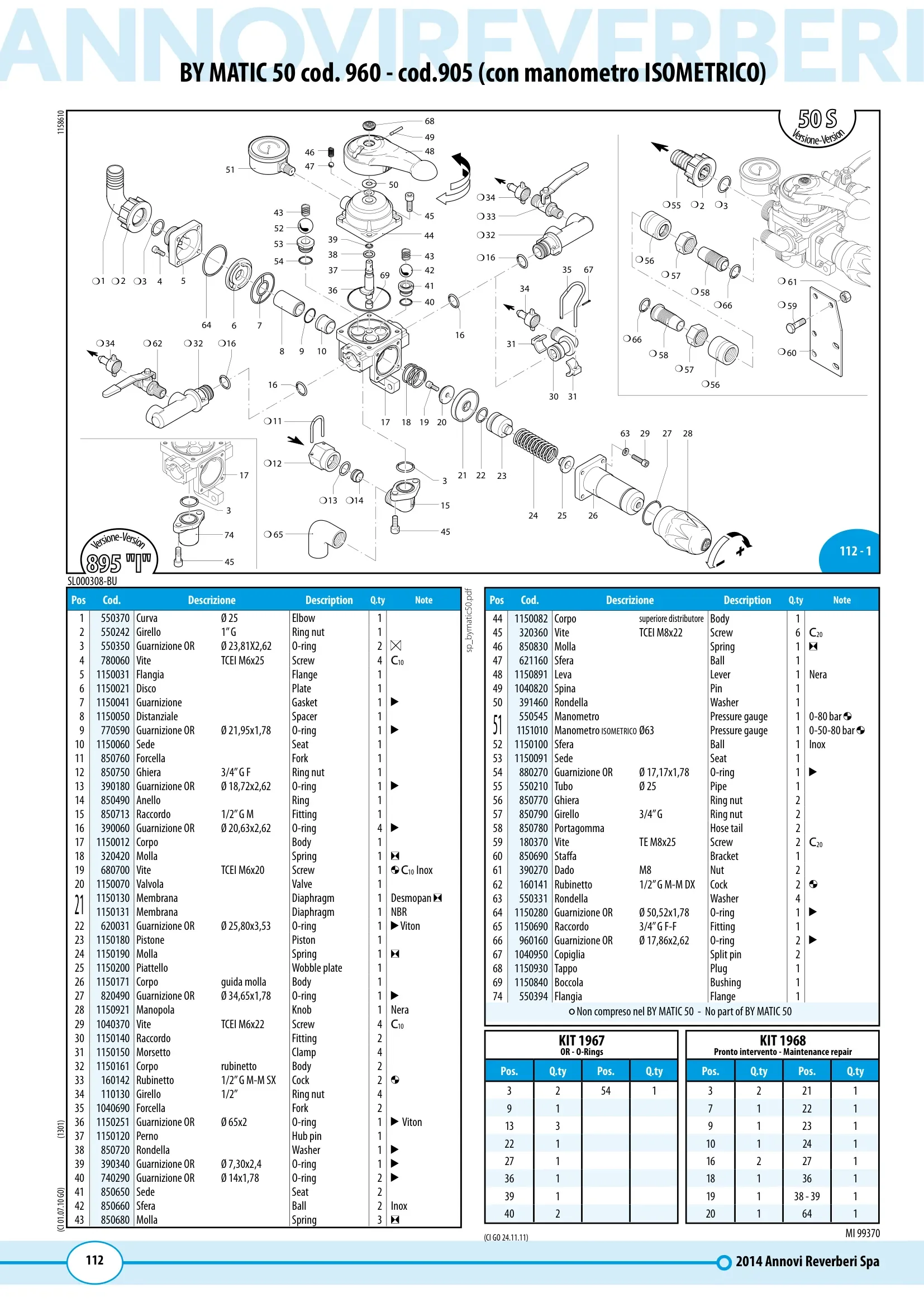

Despiece oficial Annovi Reverberi
Comando AR By Matic 50
BY MATIC 50 cód. 960 - cód. 905 (manómetro isométrico) · Annovi Reverberi (2014)
79 piezas
| N° | Pieza | Agregar |
|---|---|---|
| RACOR CURVO 25 MM AR550370Ø 25 | ||
| Tuerca galeto Ref. fabricante 5502421” G | ||
| ORING DE RACOR BOMBA AR- 70 AR550350Ø 23,81X2,62Lleva 2 | ||
| Perno Ref. fabricante 780060allen M6x25Lleva 4 | ||
| Brida Ref. fabricante 1150031 | ||
| Disco Ref. fabricante 1150021 | ||
| Sello plano Ref. fabricante 1150041 | ||
| Separador Ref. fabricante 1150050 | ||
| Sello OR Ref. fabricante 770590Ø 21,95x1,78 | ||
| ASIENTO MANDO BY MATIC AR1150060 | ||
| Horquilla Ref. fabricante 850760 | ||
| Anillo roscado Ref. fabricante 8507503/4” G F | ||
| ORING AR390180Ø 18,72x2,62 | ||
| Anillo Ref. fabricante 850490 | ||
| CONEXIÓN CURVA BYMATIC AR8507131/2” G M | ||
| ORING AR390060Ø 20,63x2,62Lleva 4 | ||
| Cuerpo Ref. fabricante 1150012 | ||
| RESORTE MANDO AR320420 | ||
| PERNO MANDO BY MATIC AR680700allen M6x20 · inox | ||
| VALVULA MANDO BY MATIC AR1150070 | ||
| MEMBRANA MANDO BY MATIC DESMOPAN AR1150130Desmopan | ||
| MEMBRANA MANDO BY MATIC AR1150131NBR | ||
| ORING AR620031Ø 25,80x3,53 · Viton | ||
| PISTON REGULACION MANDO BY-MATIC AR1150180 | ||
| Resorte Ref. fabricante 1150190 | ||
| Platillo Ref. fabricante 1150200 | ||
| Cuerpo Ref. fabricante 1150171guía del resorte | ||
| Sello OR Ref. fabricante 820490Ø 34,65x1,78 | ||
| POMO MANDO BY MATIC AR1150921negra | ||
| Perno Ref. fabricante 1040370allen M6x22Lleva 4 | ||
| CONEXIÓN CURVA COMANDO BYMATIC AR1150140Lleva 2 | ||
| BRIDA CODO SALIDA MANDO BYMATIC AR1150150Lleva 4 | ||
| Cuerpo Ref. fabricante 1150161de la llaveLleva 2 | ||
| Llave Ref. fabricante 1601421/2” G M-M SXLleva 2 | ||
| Tuerca galeto Ref. fabricante 1101301/2”Lleva 4 | ||
| HORQUILLA DE COMANDO AR AR1040690Lleva 2 | ||
| Sello OR Ref. fabricante 1150251Ø 65x2 · Viton | ||
| Perno pasador Ref. fabricante 1150120 | ||
| Arandela Ref. fabricante 850720 | ||
| Sello OR Ref. fabricante 390340Ø 7,30x2,4 | ||
| Sello OR Ref. fabricante 740290Ø 14x1,78Lleva 2 | ||
| ASIENTO MANDO BY MATIC AR850650Lleva 2 | ||
| VALVULA ESFERA MANDO BY MATIC AR850660inoxLleva 2 | ||
| RESORTE MANDO BY MATIC AR850680Lleva 3 | ||
| CUERPO SUPERIOR COMANDO BY-MATIC AR1150082superior del distribuidor | ||
| Perno Ref. fabricante 320360allen M8x22Lleva 6 | ||
| RESORTE PALANCA MANDO BY-MATIC AR850830 | ||
| ESFERA PALANCA MANDO BY-MATIC AR621160 | ||
| PALANCA MANDO BIMATIC AR1150891negra | ||
| PASADOR MANILLA COMANDO VDR-50 AR1040820 | ||
| Arandela Ref. fabricante 391460 | ||
| Manómetro Ref. fabricante 5505450-80 bar | ||
| Manómetro Ref. fabricante 1151010isométrico Ø63 · 0-50-80 bar | ||
| VALVULA ESFERA MANDO BY MATIC AR1150100inox | ||
| ASIENTO MANDO BY MATIC AR1150091 | ||
| Sello OR Ref. fabricante 880270Ø 17,17x1,78 | ||
| RACOR RECTO 25 MM AR550210Ø 25 | ||
| Anillo roscado Ref. fabricante 850770Lleva 2 | ||
| Tuerca galeto Ref. fabricante 8507903/4” GLleva 2 | ||
| Espiga portamanguera Ref. fabricante 850780Lleva 2 | ||
| Perno Ref. fabricante 180370hexagonal M8x25Lleva 2 | ||
| Escuadra de fijación Ref. fabricante 850690 | ||
| Tuerca Ref. fabricante 390270M8Lleva 2 | ||
| Llave Ref. fabricante 1601411/2” G M-M DXLleva 2 | ||
| Arandela Ref. fabricante 550331Lleva 4 | ||
| Sello OR Ref. fabricante 1150280Ø 50,52x1,78 | ||
| Conexión Ref. fabricante 11506903/4” G F-F | ||
| Sello OR Ref. fabricante 960160Ø 17,86x2,62Lleva 2 | ||
| Chaveta partida Ref. fabricante 1040950Lleva 2 | ||
| Tapón Ref. fabricante 1150930 | ||
| Buje Ref. fabricante 1150840 | ||
| Brida Ref. fabricante 550394 | ||
| 101 | Kit de mantención Ref. fabricante 1968 | |
| 102 | Kit de sellos OR Ref. fabricante 1967 | |
| 103 | Kit comando incorporado Ref. fabricante 895 | |
| 104 | Kit comando separado Ref. fabricante 988 | |
| 105 | Kit comando separado Ref. fabricante 999 | |
| 106 | Kit comando separado Ref. fabricante 990 | |
| 107 | Kit comando separado Ref. fabricante 997 |
Despiece oficial Annovi Reverberi. Los kits de repuesto van al final de la lista. Las piezas sin código Lerpain también se pueden pedir: agrégalas al carrito y el vendedor las cotiza con el número del plano.
